JMT LC Coaxial Filter Frequency 1MHz Passive Low-Pass High-Pass Filter with SMA BNC Connectors (LPF BNC Male+Female)
Product details
| Management number | 250302613 | Release Date | 2026/09/17 | List Price | US$11.99 | Model Number | 250302613 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

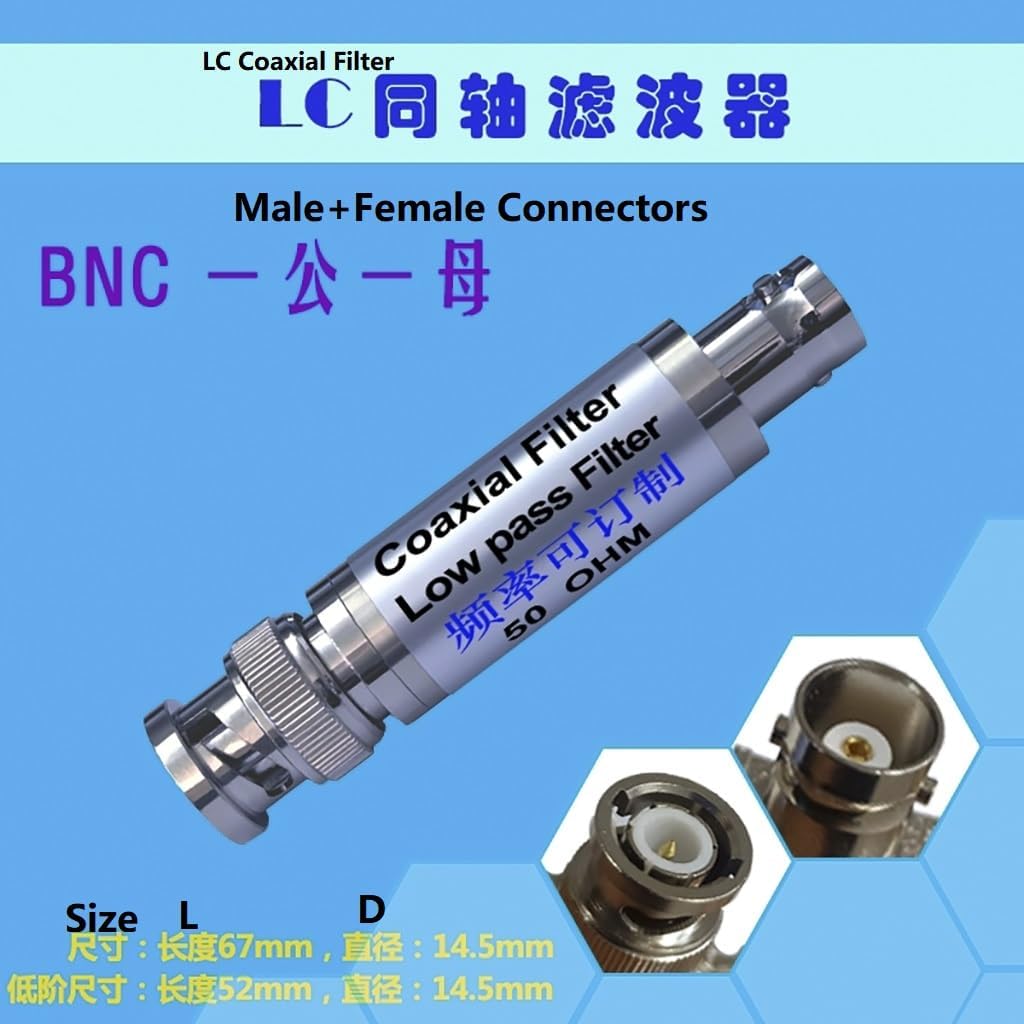

JMT LC Coaxial Filter Frequency 1MHz Passive Low-Pass High-Pass Filter with SMA BNC Connectors LPF BNC Filter 1MHz Description: Pure copper housing with nickel-plated surface, port impedance 50 ohms. BNC connectors on both ends. Dimensions: LPF BNC Male+Female Length*Diameter (52mm*14.5mm). Finished weight: 30g Maximum input power: 100m W (Maximum input signal strength: 20dBm). Operating frequency range: DC-1000MHz, Operating ambient temperature: -40°C to 80°C. Specifications: Project: Frequency Range / Typical Value Insertion Loss (IN-OUT) in Passband: DC-1MHz / <1.0dB Stopband (Out-of-Band Rejection): 3.5MHz-1000MHz / >60dB VSWR: DC-1MHz / >17dB (<1.3) In-band ripple: DC-1MHz / ±0.25dB Phase Shift: Phase Coherence / ±3° Group Delay Ripple: DC-1MHz / <700ns Input Voltage Withstand: In&Out / max: DC50V
- Pure copper housing with nickel-plated surface, port impedance 50 ohms.
- Maximum input power: 100m W (Maximum input signal strength: 20dBm).
- Operating frequency range: DC-1000MHz, Operating ambient temperature: -40°C to 80°C.
- LPF BNC Filter 1MHz： Insertion Loss (IN-OUT) in Passband: DC-1MHz / <1.0dB.

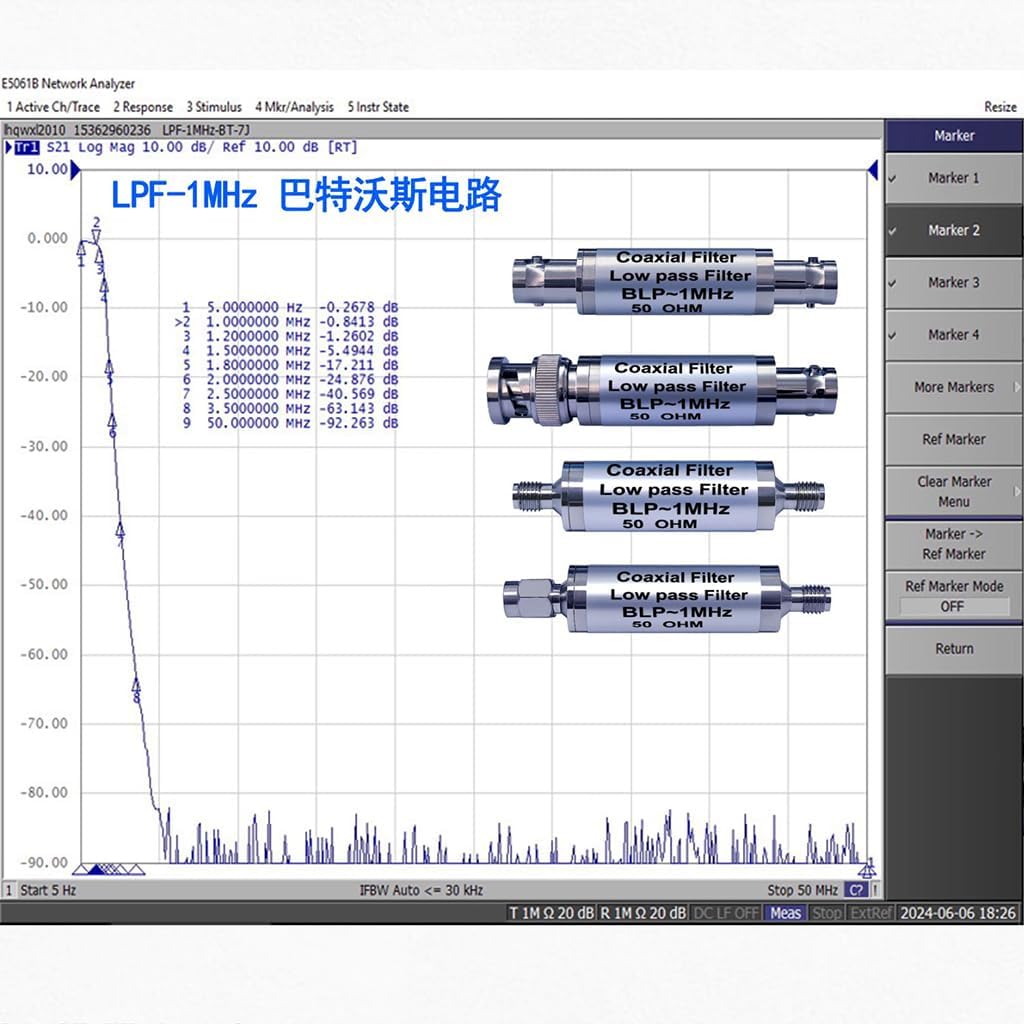

- LPF BNC Filter 1MHz：Stopband (Out-of-Band Rejection): 3.5MHz-1000MHz / >60dB. In-band ripple: DC-1MHz /
| ASIN | B0FPQ8Q4ZV |
|---|---|
| Warranty | 1 |
| Item Weight | 1.41 ounces |
| Package Dimensions | 3.94 x 3.15 x 1.97 inches |
